Introduction: Navigating the Market for Sauce Filler Machine
Running short fills, drip-dirty valves, or a 3 % giveaway on a 10 000 l batch erodes margin faster than ingredient inflation. Viscosity swings from 1 000 cP béchamel to 30 000 cP pesto with particulates expose every weakness in a filler: pulsation, trapped air, clean-out blind spots, and cap-to-nozzle misalignment. The result is rejected retail trays, MAP oxygen >0.5 %, and CIP cycles that eat 30 min of shift time.
Today’s equipment suppliers answer with closed-loop mass-flow meters, servo-driven piston heads, and automatic bag-in-box adapters that hold ±0.2 % repeatability on sauces carrying 8 mm diced vegetables. Stainless 316L product paths, FDA-compliant scrapers, and tool-less strip-down cut allergen change-over to <15 min. Whether the target is 1 200 bph 200 g sachets or 5 l bag-in-box for food-service, the decision matrix hinges on four quantified variables.
| Key Specification | Bench-top Piston | Monoblock Rotary | Bag-in-Box BB30 | Dual-lane Volumetric |
|---|---|---|---|---|
| Flow range (l/h) | 100–600 | 1 000–4 000 | 300–1 200 | 800–3 000 |
| Viscosity ceiling (cP) | 25 000 | 50 000 | 15 000 | 8 000 |
| Particulate size (mm) | 10 | 12 | 8 | 5 |
| Repeatability (±%) | 0.5 | 0.3 | 0.2 | 1.0 |
| CIP downtime (min) | 20 | 35 | 15 | 25 |
| Oxygen pick-up (ppm) | <5 | <3 | <1 | <10 |
| Tool-less change-over | Yes | No | Yes | Yes |
| Index price (base=100) | 100 | 280 | 180 | 150 |
Map your SKU portfolio against the table, lock the critical control points—fill weight, head-space O₂, cap torque—and the shortlist emerges in minutes, not weeks.
Essential Technical Specifications Matrix
Essential Technical Specifications Matrix – Sauce Filler Machine
| Parameter | Entry-Level Index | High-End Index |
|---|---|---|
| Filling Principle | Single-head piston, gravity assist | Multi-head servo-piston + mass-flow meter |
| Repeatability (± %) | 1.0 – 1.5 % | 0.2 – 0.3 % |
| Viscosity Range | 1 – 25 000 cP (max 40 % solids) | 1 – 180 000 cP (max 65 % solids, particulate ≤ 12 mm) |
| Fill Volume Range | 50 – 1 000 mL (mechanical stops) | 25 – 5 000 mL (recipe-driven, no change parts) |
| Cycle Rate (bpm, 250 mL) | 12 – 18 | 60 – 120 |
| Pump Type | Single mechanical piston, VFD only | Individual servo-driven pistons + CIP-compatible rotary lobe |
| Wetted Materials | 304 SS, FPM seals | 316L SS, PTFE/EPDM USP Class VI, Ra ≤ 0.4 µm |
| CIP/SIP Integration | Manual solvent flush | Full CIP/SIP 85 °C, 30 min validated |
| Controls / HMI | Compact PLC, 4.3″ mono HMI | 21 CFR Part 11 compliant SCADA, 15″ colour, audit trail |
| Change-over Time | 20 – 30 min (tools required) | < 5 min tool-free, recipe recall |
| Nitrogen Flush / MAP | Optional hand valve | Closed-loop N₂ control, O₂ ≤ 1 % head-space |
| Reject System | Manual visual | In-line check-weigher, auto-reject, feedback to filler |
| Footprint (L × W) | 1.1 × 0.8 m | 2.4 × 1.5 m (multi-head) |
| Power Demand | 0.75 kW, 230 V 1 ph | 4.5 kW, 400 V 3 ph + 6 bar pneumatics |
| Noise Level | ≤ 75 dB(A) | ≤ 68 dB(A) |
| Options / Scalability | None (stand-alone) | Ready for robotic tray loading, remote OEE dashboard |
Use the matrix to align CAPEX with required throughput, viscosity window, and downstream automation plans.
Regional Manufacturing Capability Heatmap
Regional Capability Heatmap – Sauce Filler Machine
| Region | Tech Level (0-5) | Avg. Ex-Works Lead Time (weeks) | Key Certifications Available | Cost Index* |
|---|---|---|---|---|
| USA | 4.8 | 10–12 | 3-A SSI, FDA 21 CFR, cGMP, UL508A | 168 |
| Germany | 5.0 | 12–14 | CE, EHEDG, ATEX, GOST-R, ISO 22000 | 154 |
| China | 3.6 | 6–8 | CE, ISO 9001, GB 16798 (hygienic design) | 100 |
| India | 3.2 | 8–10 | CE, ISO 22000, BIS (optional) | 92 |
| Italy | 4.4 | 10–12 | CE, EHEDG, 3-A SSI, ATEX | 132 |
*Index baseline: China FOB price = 100; includes standard 8-head rotary piston filler, 4 kW, 3 000–6 000 bph.
USA
High servo-driven accuracy (±0.5 %) and full FDA documentation; expect 15–20 % premium for 3-A dairy specs and UL-listed panels. Tariff-free for NAFTA end-users but domestic shop-floor capacity tight—book assembly slots 4 months ahead.
Germany
Benchmark for hygienic design and EHEDG validation; suppliers integrate inline CIP/SIP and ATEX-rated drives as standard. Labor rates and EHEDG testing add ~8 % to base machine cost, yet total cost of ownership is lowest for hot-fill (85 °C) sauces due to 99.2 % uptime demos.
China
Lead time advantage disappears if 3-A or FDA paperwork is requested—add 3–4 weeks for third-party certification. Component grade varies: insist on German-manufactured servo valves and Allen-Bradley PLCs to avoid downstream variance. Freight volatility can erase the 30–40 % price gap versus Europe in Q4.
India
Strong stainless-steel fabrication cluster around Pune; however, local component ecosystem lags on magnetic flow-meter accuracy above 2 000 cP. Suitable for mid-viscosity tomato sauces where ±1 % tolerance is acceptable. Import duty on Chinese servo drives (BIS approval) can raise landed cost 5–7 %.
Italy
Specialized in high-speed monoblock fillers (10 000+ bph) for pesto and oil-based sauces; most OEMs offer EHEDG and 3-A in parallel. Payment terms typically 30 % down, 70 % at FAT—leverage Euro weakness for 3–4 % additional savings versus USD quotes.
Common Operational Pain Points
Common Operational Pain Points – Sauce Filler Machine
| Scenario | Root Cause | Solution |
|---|---|---|
| ±1–3 % over/under-fill on 200–1 000 cP sauces with particulates | Volumetric rubber-impeller pumps lose calibration as viscosity climbs; no real-time mass verification. | Install coriolis mass-flow sensor (repeatability ≤ 0.2 %) and enable micro-error autotuning loop in PLC; schedule pulse-per-litre recalibration every 4 h. |
| 5–7 min CIP cycle leaves tomato seeds in 2” bend, forcing 30 min manual strip-down | Self-priming pump drain valve positioned above lowest point; 90° elbow creates dead-leg. | Rotate pump 15° downward, fit full-bore 45° bends, add pigging bypass; program post-rinse pigging cycle (≤ 1 % water loss) validated at ≥1,5 m s⁻¹. |
| Film seal wrinkle rate 3 % on 3 000 pouch/h run, triggering rework | Pneumatic cap adapter stroke drifts with 6 bar plant air fluctuation; no stroke feedback. | Retrofit closed-loop servo actuator (± 0,1 mm repeatability) and pressure regulator with ±0,05 bar accuracy; tie stroke position to PLC alarm at ±0,2 mm deviation. |
Technology & Material Guide

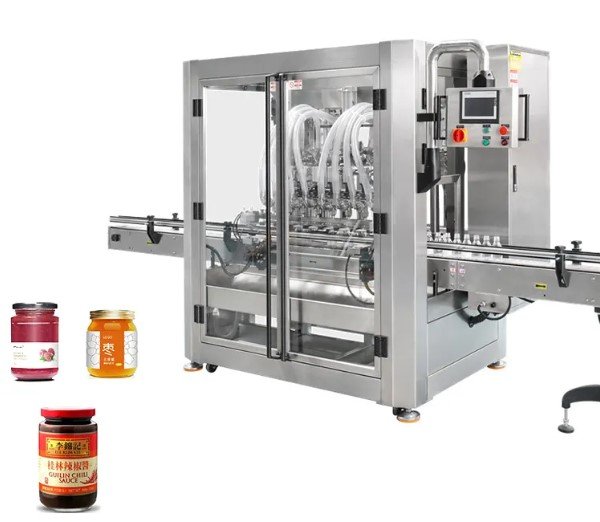

Industrial sauce filler machine application 1
Technology & Material Guide – Sauce Filler Machine
Core Technologies
– Volumetric filling principle: self-priming rubber-impeller pump or servo-driven piston; both deliver ±0.2–0.5 % repeatability on volumes 50 mL–5 L.
– Flow measurement options: magnetic-inductive (≤1 % linearity, CIP 85 °C) or mass-flow Coriolis (±0.1 %, suitable for sauces with ≤8 mm particulates).
– Nozzle architecture: 3-stage – pre-vacuum, inert-gas flush (N₂/CO₂ ≤20 ppm residual O₂), fill, post-flush; 316L split-nozzle with 0.4 µm Ra internal finish to minimise shear on starches.
– Control platform: SIEMENS S7-1200 PLC, 4.3″ colour HMI, 32 recipe slots, Ethernet/IP & OPC-UA for MES handshake; 21 CFR Part 11 audit trail optional.
– Cleaning cycle: full SIP 95 °C/30 min capability; FDA-validated caustic/acid sequence completes in ≤25 min including final conductivity verification <1 µS cm⁻¹.
Material Matrix
| Component | Standard Grade | Surface | Key Property | Compliance |
|---|---|---|---|---|
| Product tank & piping | 316L (1.4404) | 0.4 µm Ra electropolish | pitting index PREN ≥26 | AISI 316L, EN 1.4404, 3-A 63-03 |
| Piston/cylinder | 316L with PTFE/PEEK seals | 0.25 µm Ra | steam rated +150 °C | FDA 21 CFR 177.1550, EU 10/2011 |
| O-rings & gaskets | EPDM 70 Shore A or FKM Viton GF | – | 200 °C peak, ≤5 µg mL⁻¹ extractables | USP Class VI, 3-A 18-03 |
| Frame & guarding | 304 (1.4301) brushed | 0.8 µm Ra | passivated, laser-marked | AISI 304, ISO 14122 safety access |
| Conveyor rollers | UHMW-PE natural | 0.3 µm Ra | wear rate ≤0.05 mm/1000 h | FDA, EU 10/2011 |
| HMI enclosure | IP66 polycarbonate | – | IK08 impact, UL 508 | NEMA 4X, CE LVD 2014/35/EU |
Selection Checkpoints
– Particulate size: piston fillers handle ≤15 mm³ cubes; impeller pumps limited to ≤3 mm.
– Viscosity window: 0.3–30 Pa·s (300–30 000 cP) with piston; install jacketed hopper 60 °C for tomato paste >15 Pa·s.
– Oxygen-sensitive sauces: specify closed-loop N₂ control with inline O₂ probe 0–1 000 ppm; expect residual <30 ppm.
– CIP chemical load: verify chloride <80 ppm in water to avoid 316L stress-corrosion; add molybdenum-boosted 1.4435 if brine sauces.
Energy & Footprint Indices
– Power draw index: 0.35 kWh per 1 000 L filled (piston, 1 000 L h⁻¹).
– Compressed air: 6 bar, 25 Nm³ h⁻¹ for pneumatic actuators; install 0.01 µm sterile filter upstream.
– Noise level: ≤72 dB(A) at 1 m, meeting ISO 11202.
Use the table above to benchmark supplier submittals; deviations in grade or Ra values typically signal downstream sanitation risk.
Procurement Checklist for sauce filler machine
Procurement Checklist: Sauce Filler Machine
(Use this 10-point list to shortlist, benchmark, and qualify suppliers before issuing RFQs.)
| # | Checkpoint | Specification Gate | Data Target / Index | Typical Proof to Request |
|---|---|---|---|---|
| 1 | Fill Accuracy | Volume repeatability | ±0.2–0.5 % of set-point | 30-cycle SPC chart with 3 σ limits |
| 2 | Viscosity Window | Pump type & torque reserve | 50–50 000 cP (piston) / 1–3 000 cP (impeller) | Viscosity–flow matrix from supplier |
| 3 | Particulate Handling | Max solid size | ≤10 mm cube without crushing | Video of 8 h run with product dices |
| 4 | Change-over Time | Format & recipe swap | ≤15 min tool-less, ≤5 min recipe | Time-lapse video + SMED checklist |
| 5 | CIP/SIP Cycle | Hygiene validation | ≥120 °C SIP 30 min, ≤0.5 % chemical residue | 3rd-party EHEDG certificate |
| 6 | O₂ Pick-up | Inert gas control | ≤0.2 ppm DO increase | Inline optical DO trace during fill |
| 7 | MTBF / MTTR | Uptime guarantee | ≥2 000 h MTBF, ≤30 min MTTR | Field data from ≥3 reference sites |
| 8 | Energy Index | kWh per 1 000 L filled | ≤4 kWh (piston) / ≤2 kWh (impeller) | DIN 16642 energy audit report |
| 9 | Spare-parts Lead-time | Critical wear parts | ≤5 days for seals, ≤10 days for pump head | Signed SLA with stock list |
| 10 | Digital Interface | Integration readiness | Ethernet/IP + OPC-UA, Pack-ML state model | XML tag list & sample code |
How to apply the checklist
1. Insert target values from your product specs into column 4.
2. Score each supplier 0–5 against the data target; discard any bid scoring <35/50.
3. Attach the evidence in column 5 to the technical volume of the RFQ to lock guarantees.
Cost Structure Analysis
Cost Structure Breakdown – Sauce Filler Machine (Index: Base Unit = 100)
| Cost Element | HS Code | % of Index | Typical Cost Driver | Procurement Note |
|---|---|---|---|---|
| Stainless-Steel Frame & Conveyor | 7326.90 | 28 | AISI 304 sheet 2–3 mm, laser-cut & TIG-welded | Request mill test certificate; surcharge tied to LME Ni price |
| Volumetric Pump Module (rubber impeller) | 8413.60 | 18 | Flow-rate range 200–1 000 L h⁻¹, food-grade NBR stator | Compare with peristaltic option (+3 % index) for high-solids sauces |
| Piston Filling Heads (if ordered) | 8413.91 | 12 | 4–12 heads, ceramic-coated cylinders, ±0.5 % repeatability | Spare seals = 1 % of unit price per set; include in BOM |
| SIEMENS PLC & HMI | 8537.10 | 9 | S7-1200, 7″ KTP panel, 24 DI/16 DO | Firmware lock; insist on SD card licence backup |
| Pneumatic Actuators & Sensors | 8481.90 | 7 | Festo/Metal Work, PTFE seals, 5–7 bar | Check if ISO 8573-1:2010 [2:4:2] air prep is quoted |
| Inert-Gas Circuit (N₂/CO₂) | 8481.80 | 5 | 316L tubing, 0.2 µm gas filter, back-pressure valve | Specify Swagelok or equivalent to avoid re-certification |
| Safety & Guarding (CE/UL) | 7326.90 | 4 | 3 mm polycarbonate, interlock switches | Verify PL-e category 3 per ISO 13849-1 |
| CIP/SIP Skid (optional) | 8424.89 | 8 | 200 L tank, 1.5 kW heating loop, 2 % caustic cycle | Adds 8 % index; negotiate inclusion of conductivity probe |
| Packaging & Export Crating | 4415.20 | 3 | ISPM-15 plywood, VCI foil, desiccant | Destination port handling fee often excluded |
| Commissioning & FAT/SAT | 9987.00* | 6 | 2 days supplier labour, travel, test sauce | Cap at 5 % of machine value; require signed protocol |
| TOTAL INDEX | — | 100 | — | Add 2 % contingency for Ni > 20 000 USD t⁻¹ |
*Service HS code used for lack of specific goods code; treat as non-dutiable in many FTAs.
Key Take-away: Stainless steel and the pump module together account for 46 % of indexed cost—lock alloy surcharges quarterly and benchmark impeller vs. piston technology for viscosity > 15 000 cP sauces.
ROI Calculator
ROI Calculator – Sauce Filler Machine
Conclusion & Next Steps
Conclusion & Next Steps
Market Outlook (2024-2028)
The global sauce filler segment is forecast to expand at a 6.1 % CAGR, driven by single-serve pouches and clean-label sauces. Bag-in-box formats for food-service are growing 2× faster than glass jars, while piston fillers retain >55 % share in viscous (>5 000 cP) SKUs. Capital requests are shifting toward plug-and-play modules that can toggle between tomato salsa (with 8 mm particulates) and smooth cheese sauce within a 15 min CIP window. Energy and film cost indices remain the top two TCO variables; specify servo-driven pumps and ultra-thin EVOH film compatibility now to avoid retrofit delays in 2026.
Next-Step Procurement Checklist
| # | Action | Owner | KPI | Due |
|---|---|---|---|---|
| 1 | Issue RFQ for 2 000–6 000 bph sauce filler with 0.3 % fill-weight repeatability | Procurement | ≥3 compliant vendor quotes | Week 2 |
| 2 | Map viscosity curve (1 000–35 000 cP) & particulate limit (≤12 mm) vs. pump type | R&D | Signed-off product spec | Week 3 |
| 3 | Validate CIP/SIP cycle <45 min at 85 °C; request 3-A & EHEDG certificates | QA | Zero residual ATP post-rinse | Week 4 |
| 4 | Lock film-web spec: 90 µm PET/PE/EVOH, ≥0.12 g O₂ m⁻² day⁻¹ at 23 °C | Packaging | WVTR & seal-strength report | Week 4 |
| 5 | Model TCO over 10 k h: energy index, change-part cost, spare-part lead time | Finance | €/1 000 L filled | Week 5 |
| 6 | Schedule FAT at vendor site: run 3 sauces, 2 shifts, capture OEE & reject rate | Ops | OEE ≥85 %, reject ≤1 % | Week 10 |
| 7 | Secure pneumatic cap adapters for Vitop & 38 mm snap-fit in PO | Procurement | Adapter delivery ≤8 weeks | Week 6 |
| 8 | Align line integration signal list with upstream cooker & downstream cartoner | Engineering | Ethernet/IP handshake OK | Week 8 |
| 9 | Book SAT slot; verify 72 h continuous run at target speed | Ops | Zero unplanned stop >5 min | Week 14 |
| 10 | Update preventive-maintenance schedule; stock 1-year critical spares | Maintenance | Stock turn ≥2 yr⁻¹ | Week 16 |
Complete items 1-5 before short-list; items 6-10 gate the purchase order and installation timeline.
Disclaimer
Industrial sauce filler machine application 2
Market Data Disclaimer
Pricing indices and regulatory details are based on market conditions as of December 2025. B2B buyers should validate specific compliance requirements directly with manufacturers.
