H2: 2026 Market Trends for LiFePO4 24V Batteries

The global market for LiFePO4 (Lithium Iron Phosphate) 24V batteries is poised for significant growth and transformation by 2026, driven by technological advancements, expanding applications, and shifting energy demands. Key trends shaping the market include:

1. Increased Adoption in Renewable Energy Storage
   As solar and wind energy installations continue to expand globally, the need for reliable, long-lasting energy storage solutions intensifies. LiFePO4 24V batteries are increasingly preferred for off-grid and hybrid solar systems due to their superior safety, thermal stability, and long cycle life (typically 3,000–7,000 cycles). By 2026, these batteries are expected to dominate the residential and small commercial energy storage sectors, especially in regions with high solar penetration.

2. Growth in Electric Mobility and Industrial Applications
   The 24V LiFePO4 battery is gaining traction in electric forklifts, golf carts, electric boats, and light electric vehicles (LEVs). With stricter emissions regulations and a shift toward electrification in material handling and recreational sectors, demand for efficient, maintenance-free 24V systems is rising. By 2026, integration with smart battery management systems (BMS) will further enhance performance and safety in these applications.

3. Advancements in Battery Technology and Cost Reduction
   Ongoing improvements in energy density, charging efficiency, and manufacturing scalability are driving down the cost per kWh of LiFePO4 batteries. By 2026, economies of scale—particularly from China’s mature supply chain and new production facilities in North America and Europe—are expected to reduce prices by 20–30% compared to 2023 levels, making 24V LiFePO4 systems more accessible.

4. Focus on Safety and Sustainability
   LiFePO4 chemistry is inherently safer than other lithium-ion variants due to its thermal and chemical stability, reducing fire risks. With growing regulatory scrutiny on battery safety (e.g., UL 1973, IEC 62619), LiFePO4 is becoming the chemistry of choice for consumer and industrial applications. Additionally, the non-toxic nature and high recyclability of LiFePO4 batteries align with global sustainability goals, further boosting market appeal.

5. Expansion of Smart and IoT-Enabled Batteries
   By 2026, a growing number of 24V LiFePO4 batteries will feature integrated IoT connectivity, real-time monitoring, and cloud-based diagnostics. These smart batteries enable predictive maintenance, remote management, and optimized energy usage—particularly valuable in telecom backup, RVs, and marine systems.

6. Regional Market Dynamics
   Asia-Pacific will remain the largest market due to robust manufacturing and high solar adoption in countries like China and India. However, North America and Europe are expected to experience the fastest growth, fueled by government incentives for clean energy and energy independence initiatives.

In summary, the 2026 outlook for 24V LiFePO4 batteries is highly positive, characterized by broader adoption across industries, declining costs, and enhanced technological integration. As the world moves toward decentralized and sustainable energy systems, LiFePO4 24V batteries will play a critical role in enabling efficient, safe, and scalable energy storage solutions.

Common Pitfalls When Sourcing LiFePO4 24V Batteries (Quality and Intellectual Property)

Sourcing reliable and authentic LiFePO4 24V batteries is critical for system performance, safety, and longevity. However, the market is rife with challenges related to both battery quality and intellectual property (IP) concerns. Understanding these pitfalls helps buyers avoid substandard products and legal risks.

Quality-Related Pitfalls

Misrepresented Capacity and Performance
Many suppliers exaggerate the actual capacity (Ah) of their LiFePO4 batteries. A battery advertised as 100Ah may deliver only 70–80Ah under real-world conditions. This misrepresentation stems from using low-quality or recycled cells that degrade quickly. Buyers should request third-party test reports and verify discharge curves under standard conditions (e.g., 0.2C rate at 25°C).

Use of Inferior or Recycled Cells
To cut costs, some manufacturers use Grade B, refurbished, or counterfeit cells from unknown origins. These cells often show inconsistent performance, shorter cycle life, and higher self-discharge rates. Without transparent cell sourcing (e.g., branded cells from CATL, EVE, or CALB), buyers risk premature failure and safety hazards.

Poor Battery Management System (BMS) Design
The BMS is crucial for safety and longevity. Cheap batteries often feature undersized or poorly calibrated BMS units that fail to provide adequate protection against overcharge, over-discharge, short circuits, or temperature extremes. A weak BMS increases fire risk and reduces usable lifespan.

Lack of Safety Certifications
Reputable LiFePO4 batteries should carry certifications such as UN38.3, CE, RoHS, or UL. Many low-cost suppliers either falsify certificates or provide no verifiable documentation. Without proper certification, batteries may not meet international shipping, safety, or regulatory standards.

Inconsistent Build Quality and Materials
Poor welding, inadequate insulation, low-grade enclosures, and substandard wiring contribute to reliability issues. These flaws can lead to internal shorts, thermal runaway, or mechanical failure, especially in demanding environments.

Intellectual Property (IP) Pitfalls

Counterfeit or Cloned Battery Designs
Some manufacturers replicate the physical design, labeling, and even firmware of well-known brands without authorization. These clones may mimic popular models from companies like Victron, Pylontech, or EG4, infringing on trademarks and design patents. Buyers risk legal exposure if they unknowingly distribute or integrate counterfeit products.

Firmware and Software IP Violations
Many modern LiFePO4 batteries include communication protocols (e.g., CANbus, RS485) for integration with inverters and monitoring systems. Unauthorized copying of firmware or communication logic from branded systems constitutes software IP theft. This can result in compatibility issues and void warranties on other equipment.

Misuse of Branding and Trademarks
Suppliers may use logos, model names, or packaging that closely resemble established brands to mislead buyers. For example, using “LifePO4” instead of “LiFePO4” or imitating brand color schemes and fonts. This not only violates trademark law but also erodes trust in the market.

Lack of Transparency in IP Ownership
OEMs may not disclose whether they hold legitimate rights to their designs, software, or technology. Without clear IP provenance, buyers may face legal challenges, especially in regulated markets or when scaling commercial deployments.

Mitigation Strategies

• Demand Detailed Specifications and Test Reports: Insist on real-world discharge data and certified lab results.
• Verify Cell Origin: Require documentation showing cell manufacturer and grade (e.g., A-grade from CATL).
• Audit BMS Functionality: Test BMS response to fault conditions or request BMS firmware details.
• Check Certifications: Validate certifications through official databases or third-party labs.
• Conduct Supplier Due Diligence: Review company history, manufacturing facilities, and IP disclosures.
• Use Legal Agreements: Include IP indemnification clauses in procurement contracts to protect against infringement claims.

Avoiding these pitfalls ensures safer, more reliable battery systems and protects against financial and legal risks associated with poor quality and IP violations.

Logistics & Compliance Guide for LiFePO4 24V Battery (Under UN3480, Class 9 – H2 Shipment)
Version: 1.0 | Effective Date: [Insert Date]

---

1. Introduction

This guide outlines the logistics and regulatory compliance requirements for the safe transport of Lithium Iron Phosphate (LiFePO4) 24V batteries (UN3480, Class 9 hazardous material) under Hazardous Materials Regulations (HMR) as defined by the U.S. Department of Transportation (DOT) and international standards (IATA DGR, IMDG Code). This applies when shipping under Hazard Class 2 (H2) provisions, which refer to the “Lithium Battery Handling Label” requirements and limited quantity exemptions where applicable.

---

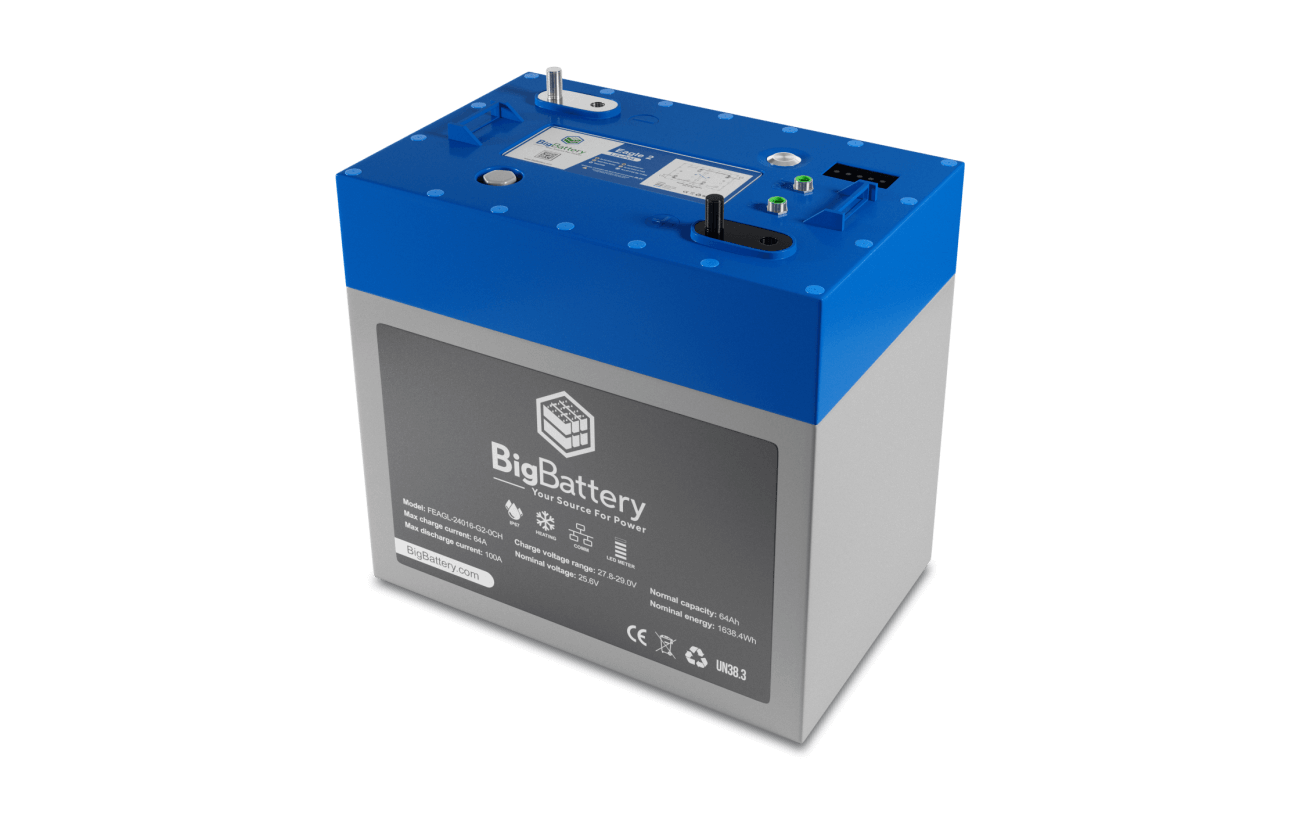

2. Product Overview

• Battery Type: Rechargeable Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 24V (typically 7 or 8 cells in series)
• Chemistry: LiFePO₄ (Lithium Iron Phosphate)
• UN Number: UN3480 – Lithium ion batteries
• Class: Class 9 – Miscellaneous Hazardous Material
• Packing Group: III (Generally)
• Typical Capacity: Varies (e.g., 50Ah, 100Ah), but affects watt-hour (Wh) rating

Note: All LiFePO4 batteries are classified as lithium ion batteries (UN3480) for transport purposes — not lithium metal.

---

3. Regulatory Framework

3.1 U.S. DOT (49 CFR)

• Applicable for domestic ground transport (e.g., by truck or rail).
• Governed by 49 CFR Parts 100–185.
• Requires proper classification, packaging, marking, labeling, documentation, and training.

3.2 IATA Dangerous Goods Regulations (DGR)

• Applicable for air transport (domestic and international).
• Edition: Current valid edition (e.g., IATA DGR 2024).
• Special Provision A48, A152, and Section II or Section IB apply depending on Wh rating and packaging.

3.3 IMDG Code (International Maritime)

• For sea freight shipments.
• Applies to containerized or break-bulk ocean transport.
• Follows UN Model Regulations with maritime-specific rules.

3.4 H2 Reference

• “H2” refers to Hazardous Materials Table Special Provision H2 (49 CFR §172.102).
• H2 states:
  “Batteries must be packed in strong outer packaging and protected from short circuits and damage. Terminals must be insulated or protected.”
• This applies to all lithium batteries transported under UN3480, regardless of mode.

---

4. Classification & Identification

| Attribute | Value |
|———|——-|
| Proper Shipping Name | LITHIUM ION BATTERIES |
| UN Number | UN3480 |
| Hazard Class | 9 |
| Subsidiary Risk | None (unless over certain thresholds) |
| Packing Instruction | PI 965 (for air), PI 966/967 (for ground/air with equipment) |
| Special Provision | H2, A48, A152, AA1 |

---

5. Shipment Options & Applicability

Option 1: Standalone Batteries (UN3480, PI 965)

• Batteries shipped alone (not packed with or installed in equipment).
• Section IA or IB applies based on watt-hour (Wh) rating.

| Air Transport | Requirement |
|—————|————-|
| > 100 Wh per battery | PI 965, Section IB (fully regulated) |
| ≤ 100 Wh per battery | PI 965, Section IA (limited quantity) |
| > 20 kg gross weight (Section IB) | Notify airline, Shipper’s Declaration required |

Option 2: Batteries Packed With Equipment (PI 966)

• Batteries packed separately in same outer box as equipment.
• Must comply with H2 (terminal protection, packaging, etc.).

Option 3: Batteries Installed in Equipment (PI 967)

• Battery installed inside device (e.g., solar inverter, EV, etc.).
• Still subject to H2 requirements and labeling.

Note: PI 966 and 967 often allow higher allowances and simplified documentation.

---

6. H2 Requirements (Critical Compliance)

Under 49 CFR §172.102, Special Provision H2, the following must be met:

1. Strong Outer Packaging:
2. Must be rigid and capable of withstanding normal handling.

3. Use double-wall corrugated cardboard or equivalent.

4. Short Circuit Protection:

5. Terminals must be insulated (e.g., caps, tape, or non-conductive enclosure).

6. Prevent contact with metal objects or other batteries.

7. Prevention of Movement:

8. Batteries must be secured to prevent shifting.

9. Use foam, dividers, or bubble wrap.

10. Labeling:

11. Class 9 hazard label.
12. Lithium Battery Handling Label (required for air shipments).

13. UN3480 / Proper Shipping Name marked.

14. State of Charge (SoC):

15. For air transport: Batteries must not exceed 30% SoC unless authorized.
16. For ground: No SoC restriction, but recommended ≤50% for safety.

---

7. Packaging Guidelines

| Step | Requirement |
|——|————-|
| 1 | Individually insulate terminals (use caps or electrical tape). |
| 2 | Place each battery in a sealed plastic bag (optional but recommended). |
| 3 | Use rigid inner packaging (e.g., cardboard box) if multiple batteries. |
| 4 | Cushion with foam, bubble wrap, or void fill. |
| 5 | Use outer packaging rated for drop test (1.2m minimum). |
| 6 | Seal with H or HJC tape. |
| 7 | Affix required labels on two opposite sides. |

Do NOT use conductive packaging or allow batteries to touch.

---

8. Labeling & Marking

All packages must display:

• Proper Shipping Name: “LITHIUM ION BATTERIES”
• UN Number: “UN3480”
• Class 9 Hazard Label (black and white stripes, “9”)
• Lithium Battery Handling Label (for air shipments – IATA-mandated)
• Orientation Arrows (if package > 30 kg)
• Shipper/Consignee Address
• “CARGO AIRCRAFT ONLY” (if applicable)

Lithium Battery Handling Label includes:
– Battery symbol
– “LITHIUM ION BATTERIES – FORBIDDEN FOR TRANSPORT ABOARD PASSENGER AIRCRAFT” (for Section IB)
– Phone number for emergency contact

---

9. Documentation

For Air (IATA) – PI 965 Section IB:

• Shipper’s Declaration for Dangerous Goods (required)
• Air Waybill with dangerous goods notation
• Emergency Response Information

For Ground (DOT) – 49 CFR:

• Shipping Paper required if over 25 kg gross weight or hazardous in bulk
• Include:
• UN3480
• Proper Shipping Name
• Class 9
• Packing Group III
• Quantity
• Emergency contact phone number

For Sea (IMDG):

• Dangerous Goods Declaration
• Container Packing Certificate
• Marking per IMDG Code

---

10. Training & Certification

• Personnel involved in classification, packaging, marking, or documentation must be trained per:
• 49 CFR §172.704 (U.S.)
• IATA DGR Section 1.5
• IMDG Code Training Requirements
• Training must be renewed every 2–3 years (depending on mode).
• Records must be retained for 3 years.

---

11. Restrictions & Prohibitions

• Passenger Aircraft:
• Standalone lithium batteries (UN3480) are forbidden unless under PI 965 Section IA (≤100 Wh) and within limits.
• Cargo Aircraft: Permitted with full compliance.
• Quantity Limits:
• Air: Max 5 kg gross weight per package for Section IA (PI 965)
• Ground: No strict limits but must follow H2 and packaging rules
• Damaged or Defective Batteries: Must be shipped under UN3481, PI 970 (more stringent rules).

---

12. Emergency Response

• In Case of Fire:
• Use Class D fire extinguisher or large amounts of water (LiFePO4 is more thermally stable but still requires cooling).
• Evacuate area, ventilate.
• Spill/Leak: Rare, but isolate and contact hazmat team.
• Emergency Contact: Include 24/7 phone number on shipping papers.

---

13. Compliance Checklist

✅ Battery is LiFePO4 (UN3480)
✅ Proper classification and UN number applied
✅ Terminals insulated (H2 compliance)
✅ Packed in strong outer packaging (H2)
✅ Class 9 label affixed
✅ Lithium Battery Handling Label (for air)
✅ State of Charge ≤30% (for air)
✅ Documentation complete and accurate
✅ Personnel trained and certified
✅ No damaged/defective batteries in shipment

---

14. Resources

• DOT 49 CFR: https://www.phmsa.dot.gov/hazmat/regs
• IATA DGR: https://www.iata.org/en/publications/dgr/
• IMDG Code: https://www.imo.org/
• UN Manual of Tests and Criteria: For battery testing (e.g., UN 38.3)

---

15. Disclaimer

This guide is for informational purposes only. Regulations change frequently. Always consult the latest edition of applicable regulations and consider using a certified Dangerous Goods Safety Advisor (DGSA) for complex shipments.

---

Prepared by: [Your Company Name]
Contact: [Hazmat Officer Email/Phone]
Review Date: [Next Review Date – Annually Recommended]

🔐 Compliance is non-negotiable. Safety first.
