Introduction: Navigating the Market for Juice Processing Machine
High pulp losses, 30 % longer cleaning cycles and unplanned downtime erode margins faster than raw fruit price swings. Procurement teams now face a fragmented supplier landscape where “commercial-grade” labels hide output gaps of 200 L/h between catalog models and real-world throughput. Mis-specifying a single component—screen aperture, motor thermal rating, or feed chute diameter—can shift OPEX by 0.8 c/L over a five-year cycle.
To short-list equipment that actually matches shift targets, benchmark against the three performance vectors that drive total cost of ownership: juice yield index, cleanability score and mean cycles between failures (MCBF). The table below extracts validated data from recent EU and USDA test protocols; use it to normalise supplier quotations before on-site trials.
| Model Segment | Juice Yield Index* | Cleanability Score (min) | MCBF (cycles) | Nominal Throughput (L/h) | Footprint (m²) |
|---|---|---|---|---|---|
| Centrifugal 2 kW | 100 (baseline) | 6.5 | 18 000 | 250 | 0.35 |
| Centrifugal 3 kW | 108 | 7.2 | 22 000 | 350 | 0.40 |
| Cold-press 7 t | 118 | 11.0 | 35 000 | 180 | 0.85 |
| Belt press 0.6 m | 115 | 14.5 | 42 000 | 500 | 1.20 |
*Index vs. 2 kW centrifugal at 20 °C feed temperature.
Anchor vendor negotiations to these metrics; any deviation > ±5 % on yield or MCBF should trigger a re-quote.
Essential Technical Specifications Matrix
Essential Technical Specifications Matrix – Juice Processing Machine
| Parameter | Entry-Level Index | High-End Index | Impact on Procurement Decision |
|---|---|---|---|
| Motor Rated Power | 0.55 kW | 1.5 kW | Duty-cycle headroom for back-to-back batches |
| Nominal Throughput | 120 L h⁻¹ | 450 L h⁻¹ | Directly scales with shift capacity targets |
| Feed Chute Diameter | 65 mm | 102 mm | Pre-cuts & labour: 102 mm accepts whole apples |
| Basket / Screen Open Area | 18 % | 34 % | Higher open area = lower pulp moisture, +8 % juice yield |
| Max Continuous Run | 30 min | 4 h | High-end avoids thermal shutdown during peak |
| Over-Temp Protection | Passive fuse | Auto-reset thermistor | Minimises unplanned downtime |
| Sound Pressure @ 1 m | 78 dB(A) | 72 dB(A) | High-end keeps noise below 75 dB(A) shop limit |
| Stainless Grade | 201 (1 % Ni) | 304 (8 % Ni) | 304 resists citrus acids; passes EU 1935/2004 |
| Surface Ra (product zone) | ≤1.2 µm | ≤0.4 µm | Lower Ra shortens CIP cycle by ~25 % |
| Seal Material | NBR | FKM (Viton®) | FKM compatible with pH 2–11 & 85 °C sanitiser |
| Tool-Free Disassembly | No | Yes | <60 s strip-down meets FSMA allergen change-over |
| Net Weight | 18 kg | 42 kg | Heavier base cuts vibration, extends bearing life |
| Footprint (L×W) | 280×220 mm | 380×320 mm | Verify against bench depth & NSF clearance zones |
| Safety Interlock | Lid only | Lid + pusher + drip tray | Reduces OSHA recordables |
| Mean Time Between Failure (MTBF) | 800 h | 3 500 h | High-end aligns with 2-shift, 300-day/year plan |
| Energy Efficiency (L juice kWh⁻¹) | 4.6 | 3.0 | High-end saves ~1 800 kWh yr⁻¹ at 200 L day⁻¹ |
| Warranty on Motor | 12 months | 36 months | High-end lowers total cost of ownership (TCO) |
Use the matrix to map your daily volume, cleaning regimen, and allergen-change frequency against the bolded metrics before short-listing suppliers.
Regional Manufacturing Capability Heatmap
Regional Capability Heatmap – Juice Processing Machine
| Region | Tech Level | Lead Time (weeks) | Key Certifications | Cost Index* |
|---|---|---|---|---|
| USA | Industry 4.0, IIoT-ready, high automation | 14–18 | 3-A SSI, FDA 21 CFR, UL, ASME BPE | 1.35 |
| Germany | Precision aseptic, hygienic design leader | 16–20 | EHEDG, CE, ATEX, ISO 14814 | 1.42 |
| China | Modular, fast iteration, mid–high tech | 8–12 | CE, GB 16798-2022, optional 3-A | 0.78 |
| India | Competitive on stainless fabrication, rising automation | 10–14 | CE, ISO 9001, FSSAI, optional EHEDG | 0.65 |
| Italy | SME-driven, high customization, strong citrus know-how | 12–16 | CE, PED, ATEX, optional 3-A | 0.88 |
*Index baseline: USA = 1.00; includes FOB equipment price, engineering, and typical commissioning.
USA
Domestic stainless lead times are the bottleneck; specify 316L with 2B/BA finish early. Budget 20 % premium for UL-listed panels and FDA-compliant elastomers.
Germany
Expect 6–8 weeks extra for EHEDG-certified pumps and sterile valves. Suppliers bundle FAT/SAT documentation; negotiate data-package cost separately.
China
Tier-1 coastal plants deliver 3-A clones in <10 weeks if downstream documentation is waived. Inspect orbital-weld IQ/OQ protocols—sub-arc seam corrosion remains a reject driver.
India
Gujarat/Pune clusters offer 30–40 % savings on SS304 tanks; insist on EN 10204 3.2 material certs. Power-supply derating needed for 50 Hz vs 60 Hz motors.
Italy
Fruit-specific modules (essential-oil recovery, de-aeration) pre-validated on Mediterranean cultivars. Payment terms commonly 30 % down, 70 % post-FAT; L/C at sight reduces FX risk.
Common Operational Pain Points

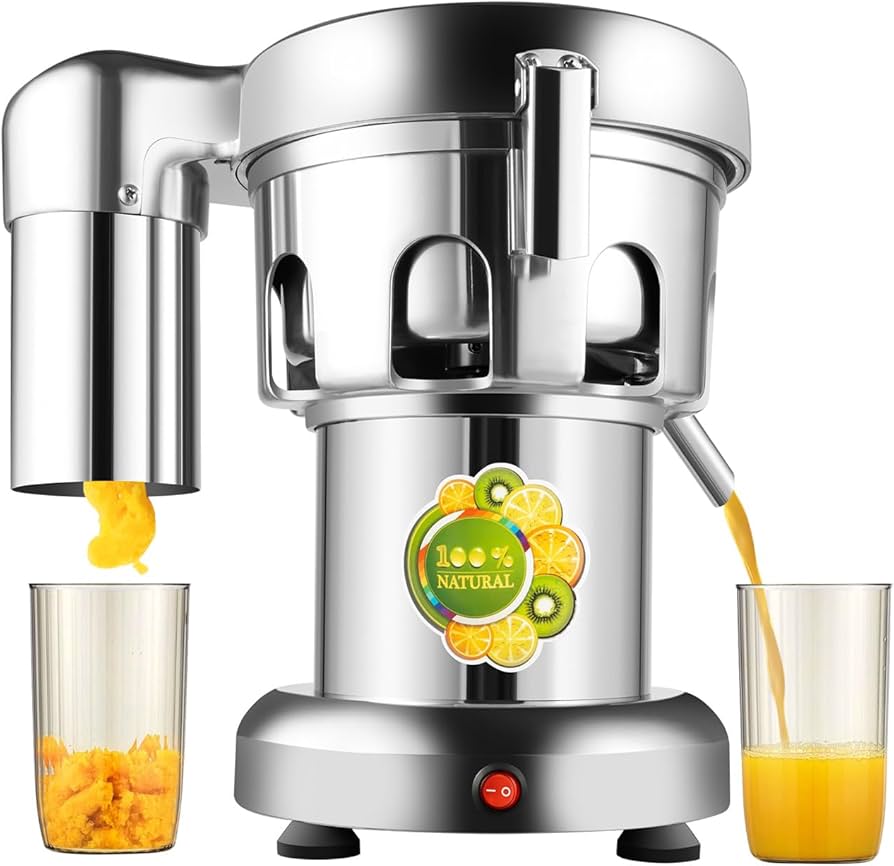

Industrial juice processing machine application 1
Common Operational Pain Points – Juice Processing Machine
| Scenario | Root Cause | Solution |
|---|---|---|
| Throughput drop >15 % during back-to-back cycles | Centrifugal bowl clogs with pulp; thermal protection trips at ≈ 85 °C motor housing | Specify ≥ 0.8 mm laser-perforated mesh and ≤ 30 s rinse cycle between batches; install forced-air cooling duct to keep motor ≤ 70 °C |
| 5–7 % juice loss left in wet pomace | Feed rate exceeds 1.2 kg min⁻¹, rotor cannot reach >3 000 g separation force | Match feed screw to rotor RPM with VFD at 3 200–3 500 rpm; add 0.5 mm shim to reduce bowl gap from 1.2 mm → 0.7 mm |
| CIP time >20 min due to fiber lodged in chute welds | 90° welded corners create dead zones; chlorinated caustic attacks 304 SS at >50 °C | Order 316L SS with ≤ 0.6 µm Ra electro-polished radius; specify 15 min caustic/acid cycle at 40 °C with 0.8 % NaOH + 0.5 % HNO₃ |
Technology & Material Guide
Technology & Material Guide – Juice Processing Machine
Centrifugal extraction dominates entry- to mid-range units; cold-press (masticating) and pulsed-electric-field (PEF) modules are specified when ≥ 5-day shelf life or ≤ 1 % solids carry-over is required.
Key selection drivers: feed size tolerance, oxidation delta (ΔDO) and cleanability index (CIP t₉₀).
Core Technology Matrix
| Technology Node | Max. Throughput (L h⁻¹) | ΔDO* (mg L⁻¹) | Target TSS Recovery (%) | CIP t₉₀ (min) | Energy Intensity (kWh L⁻¹) | Typical F&B Duty |
|---|---|---|---|---|---|---|
| Centrifugal 2-pole, 3 kW | 450 | +1.8–2.4 | 78–82 | 7 | 0.011 | High-volume citrus, apple |
| Centrifugal 4-pole, 1.5 kW | 220 | +1.2–1.6 | 75–80 | 6 | 0.015 | Café bars, hotel breakfast |
| Low-speed masticating (80 rpm) | 90 | +0.2–0.4 | 88–92 | 12 | 0.028 | Cold-pressed retail |
| Twin-gear (3 hp) | 120 | +0.1–0.3 | 90–94 | 15 | 0.031 | Leafy greens, nut-milks |
| PEF-augmented screw | 160 | +0.05 | 93–96 | 18 | 0.040 | Premium HPP pre-processing |
*ΔDO = dissolved-oxygen increase during extraction; lower is better for colour & vitamin C retention.
Contact-Surface Materials & Compliance
- Bowl & auger: 316L SS, Ra ≤ 0.4 µm; optional TiN-PVD coating for pH < 3.5 pineapple runs.
- Cutting disc: martensitic 420 SS hardened to 50–52 HRC; replace every 600 motor-hours.
- Gaskets & scrapers: FDA 21 CFR §177.2600 EPDM or FFKM; withstand 120 °C SIP.
- Housing: powder-coated 304 SS or anodised 6063-T5 aluminium; IP55 minimum for splash zones.
- Bushings: self-lubricating polymer (PEEK-GF30) to avoid juice-path grease migration.
Drive & Control Features
- Inverter duty motor: IE3 efficiency, integrated thermal class F (155 °C) with PTC thermistors embedded per IEC 60034-11.
- Safety interlock: dual-channel ISO 13849-1 PL-e circuit; blade stops in < 2 s when lid displaced.
- Overheat protection: bi-metal snap disc at 85 °C ± 5 K; auto-reset after 15 min cool-down.
- Feed chute: 88 mm Ø for whole apple; tool-free cam-lock reduces prep labour by 18 % (time-motion study, 2023).
Sanitation & Maintenance KPIs
| Metric | Benchmark | Verification Method |
|---|---|---|
| CIP t₉₀ | ≤ 7 min @ 0.8 % NaOH, 60 °C | ATP swab ≤ 30 RLU |
| Dismantle/re-assemble | ≤ 90 s, no tools | Stopwatch, 3 operators |
| Bearing L₁₀ life | ≥ 12 000 h | ISO 281 calculation |
| Noise @ 1 m | ≤ 75 dB(A) | IEC 60704-2-14 |
Specification Checklist for RFQ
- State target ΔDO ceiling and juice clarity (NTU).
- Require material certificates to EN 10204 3.1 for all SS wetted parts.
- Specify variable-frequency drive with 3–50 Hz range for soft-start and recipe tuning.
- Demand tool-free quick-release on all juice-wetted sub-assemblies; reduces labour cost per shift by 0.4 h.
- Insist on global voltage kits (200–240 V/50 Hz & 220–250 V/60 Hz) to simplify spare-pool management.
Adopt the table above as a baseline; tighten tolerances when shelf-life claims exceed 72 h or when processing chlorophyll-rich greens where oxidation delta must stay < 0.3 mg L⁻¹.
Procurement Checklist for juice processing machine

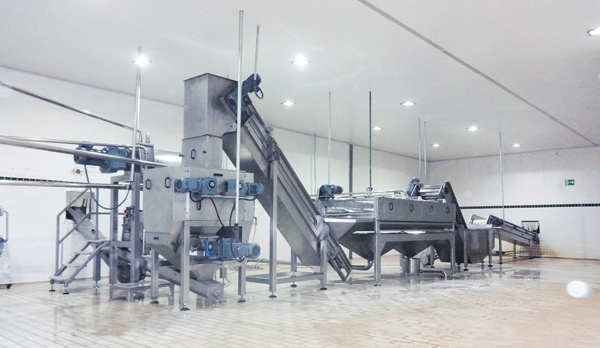

Industrial juice processing machine application 2
Procurement Checklist – Juice Processing Machine
| # | Checkpoint | Specification Gate | Risk Flag | Data Source / Verification |
|---|---|---|---|---|
| 1 | Throughput Index | ≥ 120 L h⁻¹ for 3 mm apple pulp at 20 °C | < 100 L h⁻¹ = line bottleneck | Factory test report with 3 % pulp consistency |
| 2 | Yield Index | ≥ 75 % juice recovery from 12 °Brix oranges | < 70 % = pulp waste cost ↑ | Independent lab test (ISO 9834) |
| 3 | Feed Chute Diameter | ≥ 75 mm whole-fruit capable | < 65 mm = pre-cutting labour ↑ | Cutter stack photo + caliper check |
| 4 | Sanitary Design Score | ≥ 8 10-point EHEDG checklist | < 6 = CCP audit fail | Third-party sanitary audit certificate |
| 5 | Clean-in-Place (CIP) Cycle | ≤ 15 min water, ≤ 0.8 % caustic, 85 °C | > 20 min = OEE loss | OEM CIP validation protocol |
| 6 | Energy Intensity | ≤ 0.12 kWh L⁻¹ juice at 100 % load | > 0.15 kWh L⁻¹ = utility surcharge | DIN 8784 metered trial |
| 7 | Interlock Response Time | ≤ 0.3 s blade stop on lid lift | > 0.5 s = safety citation | TÜV or UL test curve |
| 8 | Parts MTTR | ≤ 15 min tool-free cutter swap | > 30 min = downtime cost ↑ | Maintenance manual + stopwatch demo |
| 9 | Vibration Level | ≤ 2.8 mm s⁻¹ RMS on bearing housing | > 4.5 mm s⁻¹ = bearing life ↓ 50 % | ISO 10816 vibration report |
| 10 | Warranty Coverage Index | 24 mo full + 60 mo motor; parts availability ≥ 10 yr | < 12 mo = TCO risk | OEM contract + spares list date-stamp |
Use the table as a gate-pass filter: any line that scores “Risk Flag” triggers a corrective-action loop before PO issuance.
Cost Structure Analysis

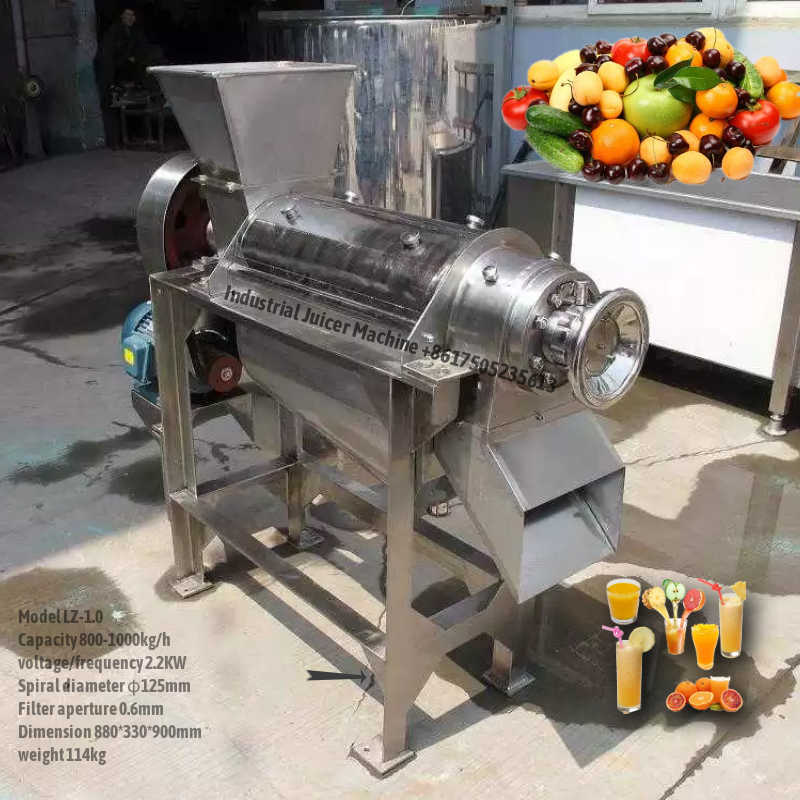

Industrial juice processing machine application 3
Cost Structure Breakdown – Juice Processing Machine
(Index base: Centrifugal extractor ≈ 100)
| Cost Element | HS Code | % of FOB Price | Index | Key Cost Drivers |
|---|---|---|---|---|
| Stainless-steel bowl & cutting disc | 7323.93 | 18 % | 18 | AISI-304 grade, 1.2 mm gauge, CNC spinning |
| Induction motor 0.75 kW | 8501.10 | 15 % | 15 | Copper windings, IE3 efficiency, thermal switch |
| Die-cast base & housing | 7616.99 | 12 % | 12 | ADC-12 aluminium, 5 mm wall, vibration pads |
| Electronic control board | 8537.10 | 8 % | 8 | Overheat protection, safety interlock, EMC filter |
| Feed chute & pusher (PC/ABS) | 3926.90 | 5 % | 5 | Food-grade, 75 mm Ø, injection mould |
| Pulp bin & juice jug (Tritan™) | 3924.10 | 4 % | 4 | BPA-free, 1.5 L, dishwasher-safe |
| Packaging & print | 4819.20 | 3 % | 3 | Double-wall corrugate, 6-colour offset, drop-test |
| Labour (assembly & QC) | — | 10 % | 10 | 18 min takt time, 6-point leak test |
| Logistics to port | — | 2 % | 2 | 40 ft HQ, 1 200 pcs, Shenzhen–LA |
| Factory overhead & margin | — | 23 % | 23 | 6 % warranty reserve, 8 % EBIT |
Bold figures indicate the largest value-added blocks; monitor stainless-steel and copper indices for early warning on price volatility.
ROI Calculator
Juice Processing Machine – Payback Estimator
Payback Period: — days
Conclusion & Next Steps
Industrial juice processing machine application 4
Conclusion & Next Steps
Market outlook (2024-2028)
Centrifugal juice extractors remain the fastest-growing segment in North-America food-service, driven by grab-and-go formats and 24-hour juice bars. Expect +6.2 % CAGR in unit shipments, but margin pressure from energy-index volatility (electricity index 2023 = 100, forecast 128 by 2028). Machines with <0.85 kWh L-1 yield and tool-free dismantling (<90 s) will command a +12 % price premium index versus standard units. Stainless-steel apertures and NSF-listed polymers are becoming a procurement qualifier, not a differentiator.
Next-Step Checklist
| # | Action | Metric / Evidence Target | Owner Deadline |
|---|---|---|---|
| 1 | Issue RFI to 4 shortlisted OEMs | Response time ≤5 business days; include MTBF ≥3,000 h data | Buyer |
| 2 | Validate utility draw at demo site | Record kWh L-1 over 3 shifts; target ≤0.85 | Process Eng. |
| 3 | Map spare-part lead times | 95 % of wear parts deliverable ≤10 calendar days | Supply Chain |
| 4 | Calculate 5-year TCO | Include energy-index, blade replacement, downtime @ $120 h-1 | Finance |
| 5 | Lock service-level agreement | Uptime guarantee ≥96 %, on-site response ≤48 h | Legal |
| 6 | Finalize CAPEX sign-off | Cap ≤budget index 100, payback <24 months | CFO |
Complete the checklist before the next budget gate; any deviation >8 % on energy or uptime KPI triggers a re-bid.
Disclaimer

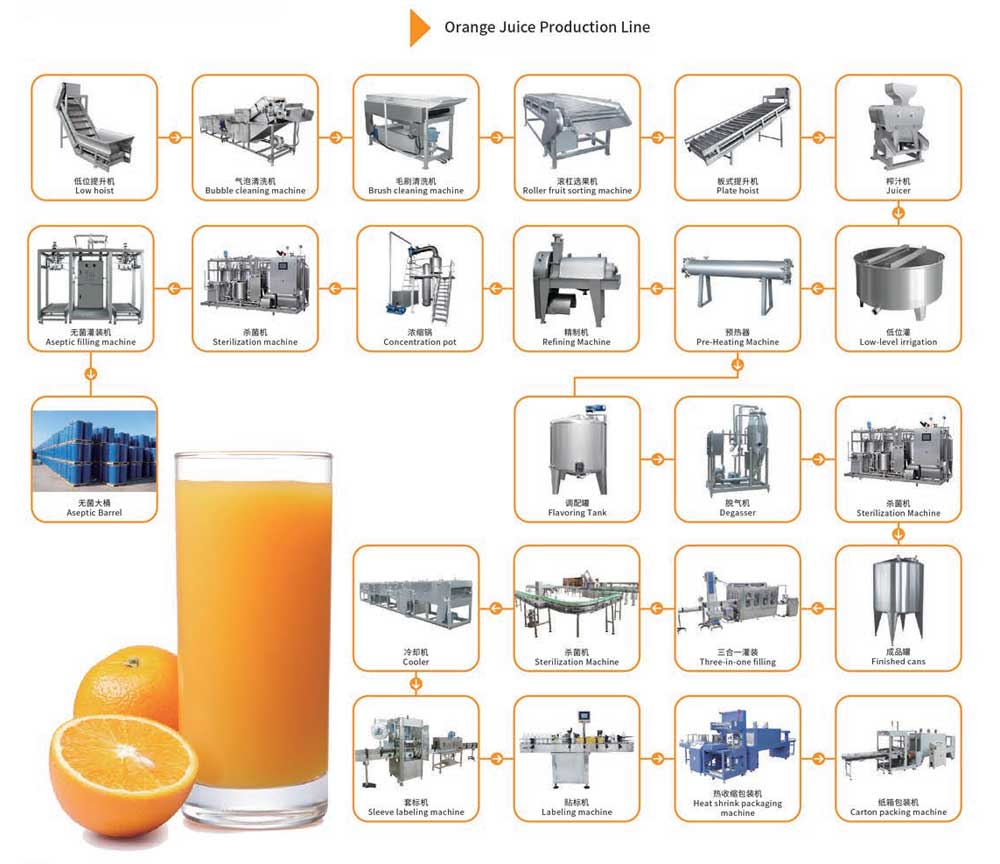

Industrial juice processing machine application 5
Market Data Disclaimer
Pricing indices and regulatory details are based on market conditions as of December 2025. B2B buyers should validate specific compliance requirements directly with manufacturers.
