H2: Market Trends for Gear Diametral Pitch in 2026

As industrial automation, electric mobility, and precision engineering continue to evolve, the market for gears—particularly those defined by diametral pitch (DP)—is undergoing significant transformation. Diametral pitch, a key parameter in gear design indicating the number of teeth per inch of pitch diameter, remains a critical specification across industries such as automotive, aerospace, robotics, and industrial machinery. By 2026, several key trends are expected to shape the demand, manufacturing, and innovation landscape for gears with standardized diametral pitch.

1. Growth in Electric Vehicles and E-Mobility Infrastructure
The rapid expansion of the electric vehicle (EV) market is a primary driver influencing gear design. Electric drivetrains require high-efficiency, low-noise gear systems, often utilizing fine-pitch gears (higher DP values) for compactness and precision. By 2026, demand for gears with DP ranging from 20 to 64 is expected to rise, especially in on-board gear reducers, e-axles, and regenerative braking systems. Manufacturers are increasingly adopting standardized DP systems to ensure interchangeability and scalability in mass production.

2. Rise of Additive Manufacturing and Customization
Additive manufacturing (3D printing) is enabling rapid prototyping and small-batch production of gears with non-standard or optimized diametral pitches. While traditional DP standards (e.g., 16, 20, 24, 32) dominate, 2026 will see increased use of custom DP values tailored to specific applications in medical devices, drones, and precision robotics. This trend supports the shift from one-size-fits-all gear systems to application-specific designs, though standardization remains essential for maintenance and replacement.

3. Emphasis on Miniaturization and High-Precision Gearing
Industries such as aerospace, defense, and medical technology are pushing for smaller, lighter gear systems. This has led to greater demand for fine-pitch gears (DP 48 and above) in actuators, servo motors, and surgical robotics. The 2026 market will reflect advancements in materials (e.g., powder metallurgy, engineered plastics) and precision machining techniques that enable reliable performance even at high DP values.

4. Standardization and Global Supply Chain Integration
Despite customization trends, standard diametral pitch series (per ANSI/AGMA and ISO standards) remain vital for global interoperability. In 2026, harmonization of DP standards across regions is expected to accelerate, especially in emerging markets adopting Western engineering practices. This supports modular design, reduces inventory complexity, and facilitates cross-border manufacturing partnerships.

5. Sustainability and Lifecycle Efficiency
Gear efficiency directly impacts energy consumption in mechanical systems. By 2026, there will be increased focus on optimizing DP selection to reduce friction, noise, and wear. Manufacturers are leveraging simulation tools to model gear performance across different pitch values, aiming to balance load capacity, efficiency, and durability. Sustainable manufacturing practices, including recyclable gear materials and long-life coatings, will complement DP optimization efforts.

6. Digitalization and Smart Gear Systems
The integration of IoT and condition monitoring in industrial gearboxes is influencing gear design. While diametral pitch remains a mechanical parameter, its selection increasingly considers integration with smart sensors and predictive maintenance systems. Gears with standardized DP facilitate easier replacement and digital twin modeling, supporting Industry 4.0 initiatives.

Conclusion
By 2026, the diametral pitch gear market will be characterized by a dual trajectory: continued reliance on standardized DP values for mass production and interchangeability, alongside growing innovation in fine-pitch and custom gear solutions driven by advanced applications. The convergence of electrification, digitalization, and precision engineering will solidify diametral pitch as both a foundational metric and a lever for performance optimization in next-generation mechanical systems.

Common Pitfalls When Sourcing Gear Diametral Pitch (Quality, IP)

When sourcing gears based on diametral pitch (DP), especially with considerations for quality and IP (Ingress Protection) ratings, several common pitfalls can lead to performance issues, premature failure, or compatibility problems. Being aware of these can help ensure reliable gear system operation.

Overlooking Quality Standards and Tolerances

One of the most frequent mistakes is assuming all gears with the same diametral pitch are interchangeable. In reality, gear quality varies significantly based on manufacturing standards (e.g., AGMA, ISO, DIN). Gears with poor tooth profile accuracy, incorrect helix angles, or inadequate surface finish can cause excessive noise, vibration, and wear—even if the DP matches. Always specify the required quality grade (e.g., AGMA 9 or ISO 6) to ensure proper meshing and longevity.

Confusing Diametral Pitch with Module

Diametral pitch (used primarily in imperial systems) and module (used in metric systems) are inversely related. Mistaking one for the other leads to incorrect gear sizing and non-mating components. Ensure your design and supplier use the same unit system. For example, a DP of 10 is not equivalent to a module of 10—it’s actually close to module 2.54.

Neglecting Material and Heat Treatment Specifications

Even with correct DP and quality grade, improper material selection or inadequate heat treatment can compromise gear strength and durability. For high-load or high-speed applications, sourcing gears made from substandard materials or without proper case hardening (e.g., carburizing or induction hardening) can result in pitting, tooth breakage, or deformation.

Ignoring Environmental and IP Rating Requirements

When gears are used in harsh environments (dust, moisture, chemicals), failing to specify appropriate IP ratings for gearmotors or enclosed gearboxes is a critical oversight. An IP54 rating protects against dust and water splashes, while IP67 offers full dust tightness and temporary immersion protection. Using non-rated or under-rated components in dirty or wet conditions leads to contamination and accelerated wear.

Assuming Interchangeability Across Manufacturers

Gears from different manufacturers may share the same DP but differ in pressure angle, backlash, or hub configuration. Assuming interchangeability without verifying full specifications can result in misalignment, increased loading, or assembly failure. Always request detailed drawings and certifications when sourcing from alternate suppliers.

Overlooking Lead Time and Customization Needs

Standard DP gears may appear readily available, but required modifications—such as keyways, mounting features, or surface coatings—can significantly extend lead times. Failing to account for customization early in the design process may delay project timelines. Work with suppliers early to confirm availability and production capabilities.

Avoiding these pitfalls requires clear communication of technical requirements, adherence to quality standards, and careful vetting of suppliers—ensuring that diametral pitch is just one part of a comprehensive sourcing strategy.

Logistics & Compliance Guide for Gear Diametral Pitch

Understanding and managing the diametral pitch (DP) of gears is essential not only for mechanical performance but also for logistics efficiency and regulatory compliance, particularly in manufacturing, distribution, and international trade. This guide outlines key considerations in handling gears based on their diametral pitch.

Definition and Importance of Diametral Pitch

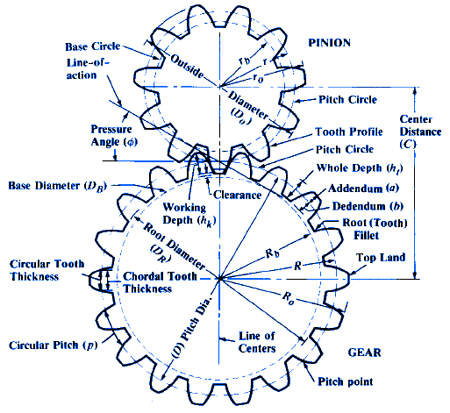

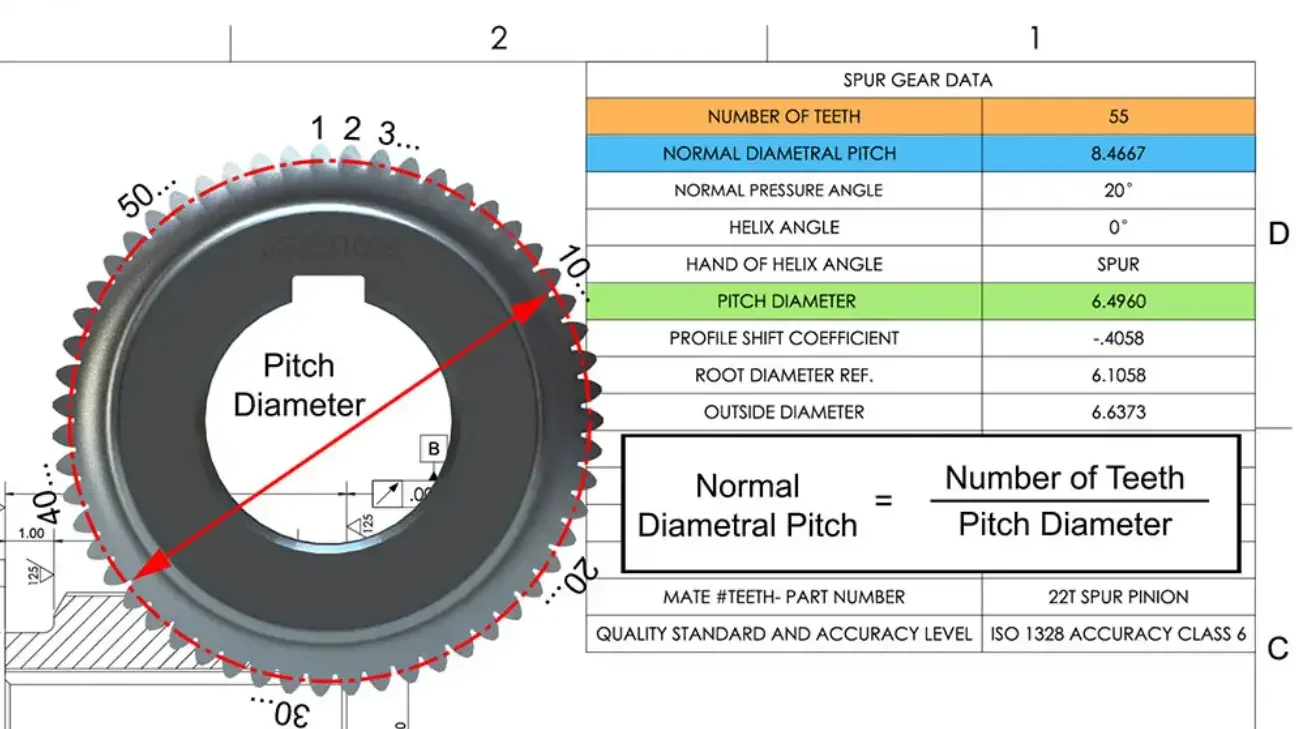

Diametral pitch is a critical parameter in gear design, defined as the number of teeth per inch of pitch diameter. It determines gear compatibility, meshing accuracy, and torque transmission. Standardized DP values (e.g., 10 DP, 16 DP, 20 DP) are used in imperial-based gear systems, primarily in North America. Ensuring correct DP specifications is fundamental to interchangeability and compliance with engineering standards.

Standardization and Regulatory Compliance

Gears must comply with industry standards to ensure safety, interoperability, and quality. Relevant standards include:

• ANSI/AGMA 2015-1-A01: Defines quality standards for fine-pitch gearing.
• ASME B92.1: Covers spline and gear specifications, including DP.
• ISO 53:1998: While metric (module-based), it provides context for international equivalency.

Compliance with these standards is required for certification in industries such as aerospace, automotive, and industrial machinery. Documentation must clearly state DP values and conform to applicable standards during audits or inspections.

Manufacturing and Quality Control Logistics

Manufacturers must maintain tight tolerances for DP to ensure gear meshing and longevity. Key logistics considerations include:

• Tooling Calibration: Cutting tools (hobs, shapers) must be matched precisely to DP specifications.
• Inspection Protocols: Use gear measurement systems (e.g., CMM, gear testers) to verify tooth profile and pitch accuracy.
• Batch Traceability: Assign lot numbers and maintain records linking DP specifications to production batches for quality audits.

Non-compliant DP can lead to premature wear, noise, and system failure—resulting in recalls or liability issues.

Inventory and Distribution Management

Proper categorization of gears by DP is vital for inventory accuracy and order fulfillment:

• Labeling Requirements: Packaging and internal labels must clearly state DP (e.g., “16 DP Spur Gear – 32 Teeth”).
• Stock Segregation: Store gears by DP to avoid cross-use and misshipping.
• ERP Integration: Include DP as a searchable attribute in inventory systems to support correct part selection.

Shipping gears with incorrect or undocumented DP may result in customer returns, contractual penalties, or non-conformance reports.

International Trade and Documentation

When exporting gears, DP must be clearly declared on shipping documents, especially since many regions use metric modules (Module = 25.4 / DP). Key compliance steps:

• Harmonized System (HS) Codes: Classify gears appropriately (e.g., HS 8483.10 for gear wheels) with technical specs including DP.
• Customs Declarations: Provide detailed technical data sheets specifying DP to avoid delays or classification disputes.
• Unit Conversion Awareness: Include both DP and equivalent module values where necessary for clarity in global markets.

Misdeclaration or omission of DP may trigger customs inspections or import denials.

Handling and Packaging Standards

To preserve gear integrity during transit:

• Protective Packaging: Use anti-corrosion wraps and rigid containers to prevent tooth damage, which could alter effective DP.
• Environmental Controls: Store and ship in dry, temperature-stable conditions to avoid dimensional changes in plastic or composite gears.
• Handling Procedures: Train personnel to identify and handle gears by DP to prevent mix-ups.

Summary and Best Practices

To ensure logistics efficiency and compliance:

• Always verify DP against engineering drawings and standards.
• Maintain accurate documentation throughout the supply chain.
• Train staff on DP significance and handling protocols.
• Align with ANSI/AGMA standards and customer-specific requirements.

Adherence to diametral pitch specifications supports operational reliability, regulatory compliance, and customer satisfaction across global markets.
