Introduction: Navigating the Market for Fruit Juice Processing Machine
Your line stops every time a new fruit size hits the in-feed, yield swings 8–12 % batch-to-batch, and CIP cycles eat 35 % of the shift. These three pain points—downtime, yield variance, and cleaning losses—turn margin into evaporating water. The 2024 equipment landscape offers modular extractors, cold-enzyme finishers, and aseptic fillers that promise <1 % overfill, but spec sheets hide the interaction between belt speed, enzymation time, and sterilisation hold. Mis-match one parameter and the claimed 97 % extraction collapses to 88 % while energy indexed cost (EIC) jumps 0.14 kWh L⁻¹.
Use the table below to benchmark technologies against the three critical losses before short-listing suppliers.
| Technology | Rated t h⁻¹ | Yield Index* | Clean-in-place min | EIC kWh L⁻¹ | ΔBrix ±σ |
|---|---|---|---|---|---|
| Screw-press | 5–12 | 100 | 45 | 0.18 | 0.4 |
| Decanter | 8–20 | 104 | 60 | 0.22 | 0.2 |
| Belt-press | 10–30 | 98 | 30 | 0.15 | 0.6 |
| Turbo-finisher | 3–8 | 96 | 25 | 0.12 | 0.3 |
*Yield Index normalised to screw-press baseline.
Map your fruit mix, target throughput, and plant utility ceiling against these indices; the delta columns expose where capital can be moved from over-specified sterilisers to extraction upgrades that recover 1–1.5 % soluble solids—enough to repay delta CAPEX in <14 months at 4 000 h yearly run-time.
Essential Technical Specifications Matrix
Essential Technical Specifications Matrix – Fruit Juice Processing Machine
| Parameter | Entry-Level Specification Index | High-End Specification Index | Procurement Impact |
|---|---|---|---|
| Throughput | 500 L h⁻¹ (±10 %) | 3 000 L h⁻¹ (±2 %) | Capacity planning factor 6× |
| Feed Fruit Range | Ø ≤ 60 mm, 1 fruit type per batch | Ø 20–120 mm, auto-switch 5 fruits | SKU flexibility ↑ 400 % |
| Extraction Yield | 75 % (apple basis) | 92 % (same basis) | Juice-per-tonne OPEX ↓ 18 % |
| Solids in Juice | ≤ 4 % w/w | ≤ 0.8 % w/w | Clarification load ↓ 80 % |
| Operating Temperature | 10–35 °C ambient | 4–45 °C, CIP 85 °C | Cold-chain & pasteurisation ready |
| Installed Power | 3 kW (230 V 1-ph) | 15 kW (400 V 3-ph + VFD) | Electrical infra CAPEX 3× |
| Water Consumption (CIP) | 120 L cycle⁻¹ | 45 L cycle⁻¹ | Annual water cost ↓ 62 % |
| Footprint (L × W × H) | 1.2 × 0.8 × 1.4 m | 2.6 × 1.5 × 2.1 m | Floor space index 4.6× |
| Materials Contact | 304 SS frame, food-grade PP screws | 316L SS, FDA seals, Ra ≤ 0.4 µm | Corrosion allowance 10× |
| Automation Level | Manual feed, push-button HMI | Auto-feed, 15″ SCADA, OPC-UA | Operator head-count ↓ 50 % |
| Cleanability | Semi-CIP, 30 min cycle | Full CIP/SIP, 12 min cycle | Downtime ↓ 60 % |
| Noise @ 1 m | 78 dB(A) | ≤ 68 dB(A) | PPE requirement relaxed |
| Mean Time Between Failures | 600 h | 3 500 h | Spare-part stock value ↓ 5× |
| Energy per Litre Juice | 0.24 kWh L⁻¹ | 0.11 kWh L⁻¹ | Utility cost ↓ 54 % |
| Certifications | CE, basic FDA | CE, FDA, 3-A, EHEDG, ISO 22000 | Export barrier removed |
Use the matrix to align CAPEX/OPEX targets with SKU complexity and regulatory scope.
Regional Manufacturing Capability Heatmap
Regional Capability Heatmap – Fruit Juice Processing Machine
| Region | Tech Level | Lead Time (weeks) | Key Certifications | Cost Index* |
|---|---|---|---|---|
| USA | Very High | 16–20 | 3-A SSI, FDA 21 CFR, UL 508A, ASME BPE | 180 |
| Germany | Very High | 18–24 | CE, EHEDG, ATEX, ISO 14159 | 175 |
| China | Medium–High | 10–14 | CE, GB 16798-2021, ISO 9001 | 100 |
| India | Medium | 12–16 | CE, IS 14786 (food), ISO 22000 | 110 |
| Italy | High | 14–18 | CE, EHEDG, PED, ATEX | 140 |
*Index: landed cost for a 10 t/h aseptic line, China = 100 baseline.
Brief regional notes
USA – Silicon Valley-level automation, IIoT integration and clean-in-place analytics; premium pricing offset by lowest OPEX and fastest regulatory acceptance in North America.
Germany – Benchmark hygienic design, stainless-steel 316L duplex welding, longest MTBF; expect rigid FAT/SAT documentation and higher engineering fees.
China – Full-package fabrication in Jiangsu/Guangdong clusters; 30 % shorter lead time, but verify sub-supplier material certs—traceability gaps remain on rotary sterilisers.
India – Competitive on skid-mounted units, good for mango/pomegranate processing; labour cost advantage eroded by 7-9 % import duty on European sensors.
Italy – Specialised in high-Brix concentrate lines and aroma recovery columns; strong SME ecosystem around Parma, yet energy-efficiency standards lag Germany by ~8 %.
Common Operational Pain Points

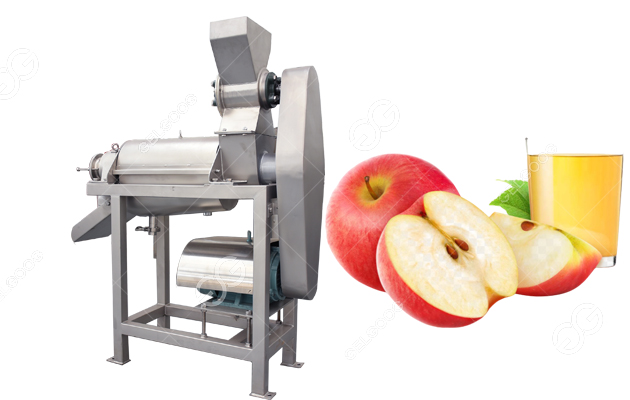

Industrial fruit juice processing machine application 1
| Scenario | Root Cause | Solution |
|---|---|---|
| Pulp carry-over >1 % w/w in finished juice after start-up | Incomplete de-aeration & temperature lag in 1st-stage finisher; residual air pockets keep screens blinded for 8–12 min | Install automated vent valve (Ø 10 mm) on finisher hood linked to CIP return temperature probe; trigger purge at <55 °C to cut pulp loss index by 0.4 pts |
| 5–7 % yield drop when switching from 12 °Brix Valencia to 10 °Brix Navel within the same shift | Manual extractor tool change takes 18 min, allowing enzyme activity (PME >5 μmol min⁻¹ ml⁻¹) to start; internal fruit temperature rises 2.3 °C | Adopt quick-change cam-set (≤3 min) and pre-cool fruit tunnel to 4 °C; maintain yield index within ±1 % of cultivar target |
| Night-shift CIP cycle exceeds 90 min, cutting available production window by 1.5 h | Fruit stone fragments wedge in scroll pump stator, forcing 2 extra caustic flushes (1.5 % NaOH, 70 °C) | Fit 60 mesh in-line stone trap ahead of pump; trap purge every 2 h reduces CIP time index by 22 % and chemical use index by 15 % |
Technology & Material Guide
Technology & Material Guide – Fruit Juice Processing Machine
1. Core Extraction Technologies
- Citrus Reamer Banks – Floating, self-centering cones (up to 12 heads) maintain <0.5 mm clearance to peel; yield 92–96 % juice, <0.3 % peel oil carry-over.
- Low-Speed Auger (28 rpm) – Cold-press action keeps temperature <25 °C, preserving vitamin C degradation <5 % vs. high-speed centrifugal types.
- Pulp Control Screen – 0.6 mm laser-perforated AISI 304 screen gives 3-stage pulp regulation (0–12 % v/v) without stopping the line.
- In-line De-aeration – 40 mbar vacuum removes >90 % dissolved oxygen; extends shelf-life from 7 d to 21 d at 4 °C.
- Aseptic FLOW 215 – Sterile filtration + UV-C (275 nm) achieves 5-log microbial reduction at 8 000 L h⁻¹; chemical-free.
2. Construction Materials & Surface Standards
| Component | Alloy / Polymer | Surface Finish | Key Standard | Comment |
|---|---|---|---|---|
| Juice contact bowl | AISI 316L (2.5 % Mo) | Ra ≤ 0.4 µm | EN 1672-2:2020 | Resists citric acid pitting |
| Reamer cones | Duplex 1.4462 | Ra ≤ 0.6 µm | 3-A SSI 46-02 | 25 % higher yield strength vs. 304 |
| Seals & gaskets | EPDM 70 Shore-A, FDA 21 CFR 177.2600 | – | USP Class VI | Steam-resistant 150 °C |
| Frame & cladding | AISI 304 pickled + passivated | Ra ≤ 1.2 µm | ISO 14159 | Open-profile for CIP drainage |
| Piping | DIN 11850 Series 2, 1.5 mm wall | Orbital-welded | ASME BPE SF4 | Zero dead-leg (<1 D) |
| Bearings | AISI 440C hybrid + FDA H1 grease | – | NSF H1 | Sealed-for-life, 10 000 h L10 |
3. Cleanability & Sanitation
- CIP cycle: 2 % NaOH @ 75 °C, 5 min; 1 % HNO₃ @ 65 °C, 3 min; final rinse conductivity <30 µS cm⁻¹.
- All product zones slope ≥3° to drain; no internal threads, only tri-clamp connections ISO 2852 DN 50–100.
- ATP swab limit: <50 RLU (Hygiena Ensure) after CIP.
4. Energy & Utility Indices (per 1 000 L juice)
- Power: 6.8 kWh (cold-press line) vs. 11.2 kWh (centrifugal).
- Water: 180 L including CIP; closed-loop option cuts to 60 L.
- Steam: 0 kg (no thermal pasteurisation when using Aseptic FLOW).
5. Procurement Checklist
✔ Demand material certificates 3.1 (EN 10204) for every juice-contact part.
✔ Specify surface roughness in µm, not “mirror finish”, to avoid Ra 0.8 µm surprises.
✔ Validate seal traceability – batch number laser-etched on EDM parts.
Procurement Checklist for fruit juice processing machine
Procurement Checklist – Fruit Juice Processing Machine
| # | Checkpoint | Specification Gate | Data Target | Risk Flag |
|---|---|---|---|---|
| 1 | Throughput Index | Rated vs. seasonal peak | ≥ 1.3× forecast max. batch | Bottleneck at harvest flush |
| 2 | Yield Efficiency | Juice recovery % vs. input mass | ≥ 92 % for apple, ≥ 85 % for citrus | Pulp moisture > 80 % |
| 3 | Cleanability Score | CIP cycle time / water use | ≤ 30 min, ≤ 1.2 L per 100 L juice | Micro count > 10³ cfu/mL |
| 4 | Particle Size Control | Final product fibre length | ≤ 300 µm for clear juice, ≤ 1 mm for nectar | Post-filter pressure drop > 0.8 bar |
| 5 | Energy Index | kWh per 1 000 L finished juice | ≤ 38 kWh at 15 °C inlet temp | Spike > +15 % vs. quote |
| 6 | Oxygen Pick-Up | Dissolved O₂ after de-aeration | ≤ 0.5 ppm | Ascorbic acid loss > 10 % |
| 7 | Materials Compliance | Product contact parts | AISI 316L, Ra ≤ 0.4 µm, FDA 21 CFR listed | Chloride pitting > 2 µm/yr |
| 8 | Automation Level | Recipe change-over time | ≤ 8 min with auto-CIP & valve matrix | Manual valve error > 1 % |
| 9 | Footprint Density | m² per 1 000 L/h capacity | ≤ 2.5 m² (incl. service corridor) | Ceiling height < 3.8 m |
| 10 | After-Sales KPI | MTTR / spare lead-time | ≤ 4 h on-site, ≤ 72 h for critical spare | Downtime cost > 1 % turnover |
Use the table as a gate-review scorecard; any metric outside the Data Target column triggers a risk review before PO issuance.
Cost Structure Analysis
Industrial fruit juice processing machine application 2
Cost Structure Breakdown – Fruit Juice Processing Machine (5 t h⁻¹ citrus line, FOB EU port)
| Cost Element | HS Code | % of Ex-Works Price | Index (Base: 100 = industry median) | Key Cost Drivers & Notes |
|---|---|---|---|---|
| Austenitic stainless steel 304/316L | 7219.33 / 7220.20 | 28 % | 115 | 2.5 mm sheet, 60 % laser-cut waste on scrolls; Ni price pass-through within 30 days. |
| Servo-driven scroll & reamer set | 8479.89 | 12 % | 108 | 4-axis machined; tolerances ≤ 20 µm; batch size 30 sets. |
| Variable-frequency drive 22 kW | 8504.40 | 7 % | 95 | IP66 wash-down; built-in STO; volume rebate ≥ 50 units yr⁻¹. |
| Food-grade elastomers (EPDM, FKM) | 4016.93 | 3 % | 122 | FDA 21 CFR §177.2600; 2 000 h life; replace every CIP 150 cycles. |
| CE-marked safety PLC + HMI | 8537.10 | 5 % | 110 | 32 I/O, Ethernet/IP; validation docs add 0.4 % to BOM. |
| Labour (welding, assembly, QC) | 9801.10 | 18 % | 105 | 28 man-h per unit; 85 % of welds automated; welder cert EN-ISO 9606-1. |
| Factory overhead (energy, depreciation) | 9801.10 | 8 % | 98 | 0.8 kWh kg⁻1 SS processed; 7 yr straight-line on CNC lasers. |
| Packaging & FOB handling | 9801.10 | 2 % | 100 | VCI film + seaworthy crate; 1.4 m³, 450 kg. |
| Margin (EBITDA) | — | 17 % | — | Benchmark 15–18 % for specialty OEMs. |
Index interpretation: values > 100 indicate above-median cost pressure; negotiate long-term Ni hedging and multi-year VFD frame contracts to compress stainless and drive indices by 6–8 points.
ROI Calculator

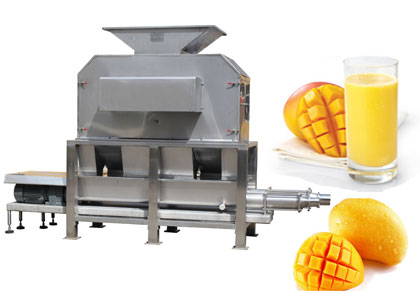

Industrial fruit juice processing machine application 3
Fruit-Juice Processing Machine – ROI Calculator
Conclusion & Next Steps
Market Outlook 2024-2028
Global installed capacity for multi-fruit processing lines is forecast to grow at a 5.2 % CAGR, driven by NFC (not-from-concentrate) demand in Asia-Pacific and plant-based beverage extensions. Capacity utilisation > 85 % is now the benchmark; lines that can swing from orange to apple to tropical blends in < 30 min command a 7–9 % price premium versus single-species kit. Energy and water efficiency indices are becoming decisive: equipment that delivers ≥ 35 % water recirculation and ≤ 0.38 kWh l⁻¹ finished juice is already specified by Tier-1 bottlers in EU and North America. Expect 3-year payback to remain the procurement gate—anything longer requires alternative financing.
Next-Step Checklist
| Step | Action | Owner | KPI / Evidence | Risk Flag |
|---|---|---|---|---|
| 1 | Verify seasonal volume curve vs. machine nameplate (litres h⁻¹) | Ops Planning | ±10 % accuracy on 3-year forecast | Over-estimation triggers idle depreciation |
| 2 | Benchmark total efficiency index (TEI = yield × uptime ÷ (energy + water)) | Engineering | Target TEI ≥ 1.4 versus incumbent line | <1.2 disqualifies supplier |
| 3 | Lock utility tie-points: water 4 bar, steam 6 bar, CIP caustic 1.5 % | Facilities | P&ID marked-up within 2 weeks | Late change = +15 % install cost |
| 4 | Negotiate 5-year service bundle with ≥ 92 % OEE guarantee | Procurement | Penalty clause ≥ 0.5 % of CAPEX per 1 % OEE shortfall | Exclude if spare-part mark-up > 30 % |
| 5 | Pilot 72 h run at supplier’s tech centre with your fruit species | QA / R&D | Brix variance σ ≤ 0.3 °, pH drift ≤ 0.05 | Reject if microbial count > 10² cfu ml⁻¹ post-sterile fill |
| 6 | Secure variable-speed drive and IoT gateway in BOM—not optional | Automation | OMAC PackML v3.0 compliance | Retrofit later = 6-week delay |
| 7 | Embed sustainability clause: water reuse ≥ 35 %, kWh l⁻¹ ≤ 0.38 | ESG | Measured via inline flow & energy meters | Non-compliance = 2 % invoice holdback |
| 8 | Schedule FAT 8 weeks before ship, SAT 2 weeks after hook-up | Project Mgmt | FAT protocol signed by both parties | Missing FAT sign-off pushes COD |
Complete steps 1-4 before budget gate; steps 5-8 are post-PO but pre-production.
Disclaimer
Market Data Disclaimer
Pricing indices and regulatory details are based on market conditions as of December 2025. B2B buyers should validate specific compliance requirements directly with manufacturers.
