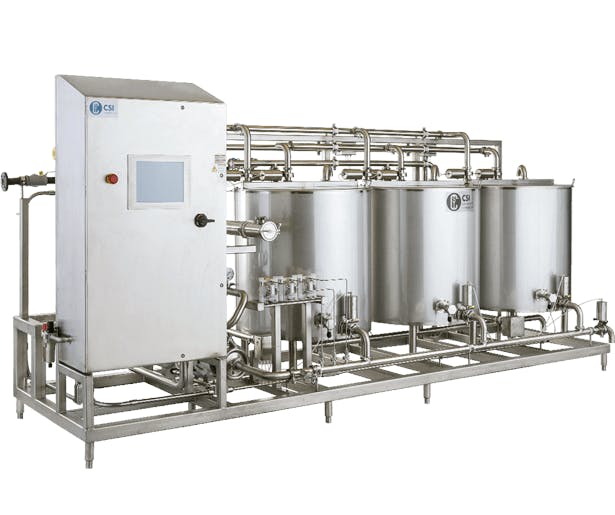

Essential Technical Specifications Matrix
| Specification | Entry-level | High-end |
|---|---|---|
| Flow Rate | 10-20 m³/h | 30-50 m³/h |
| Max Pressure | 6-8 bar | 10-15 bar |
| Temperature Control | ±5°C | ±1°C |
| Material Construction | AISI 304 | AISI 316L |
| Automation Level | Basic PLC | Advanced PLC with HMI |
| Compliance Standards | FDA, EHEDG | 3A, EHEDG, FDA |
| Cleaning Cycle Time | 60-90 min | 30-45 min |
| Water Consumption | 15-25 L/cycle | 10-15 L/cycle |
| Energy Consumption | Higher | Lower |
| Connectivity | RS485 | Ethernet/IP, IoT |
| Price Index | Low | High |
Regional Manufacturing Capability Heatmap
| Region | Tech Level | Lead Time | Key Certifications | Cost Index |
|---|---|---|---|---|
| USA | High | 10-14 weeks | FDA, ASME, ISO 9001 | 100 |
| Germany | Very High | 12-16 weeks | CE, EHEDG, ISO 9001 | 115 |
| China | High | 8-12 weeks | GB, ISO 9001 | 75 |
| India | Moderate | 6-10 weeks | BIS, ISO 9001 | 65 |
| Italy | High | 10-14 weeks | CE, EHEDG, ISO 22000 | 105 |
USA: High technical capability with strong regulatory compliance for FDA and ASME standards, suitable for high-spec applications. Lead times moderate due to stringent quality controls. Cost index reflects premium pricing for reliability.
Germany: Top-tier precision engineering with EHEDG and CE certifications ideal for European markets. Longer lead times due to rigorous manufacturing processes. Highest cost index but justified by quality and durability.
China: High production capacity with competitive lead times and cost efficiency. Certifications primarily GB and ISO 9001; may require additional validation for Western markets. Cost-effective option for budget-conscious projects.
India: Emerging capability with lower costs and shorter lead times. Certifications are basic (BIS, ISO 9001), suitable for less stringent applications. Best for cost-sensitive projects where regulatory complexity is minimal.
Italy: Strong in food and beverage sectors with EHEDG and ISO 22000 compliance. Moderate lead times and costs, ideal for European markets requiring food safety standards.
Common Operational Pain Points
Common Operational Pain Points
| Scenario | Root Cause | Solution |
|---|---|---|
| CIP cycles exceeding 90 minutes per cleaning, causing production delays | Suboptimal pump flow rates and manual parameter adjustments | Implement variable frequency drives (VFDs) on pumps and automated control systems to reduce cycle times by 25-30% |
| High water usage (15-20 m³/cycle) and chemical consumption 10-15% above benchmarks | Open-loop system design without water recycling and improper chemical dosing | Closed-loop system with water reuse and automated dosing, reducing water use by 40% and chemicals by 20% |
| Manual validation checks resulting in 15-20% rework rates due to inconsistent cleanliness | Lack of real-time monitoring of critical parameters (e.g., conductivity, temperature) | Integrate IoT sensors for continuous monitoring and automated validation, reducing rework by 25% |
Technology & Material Guide

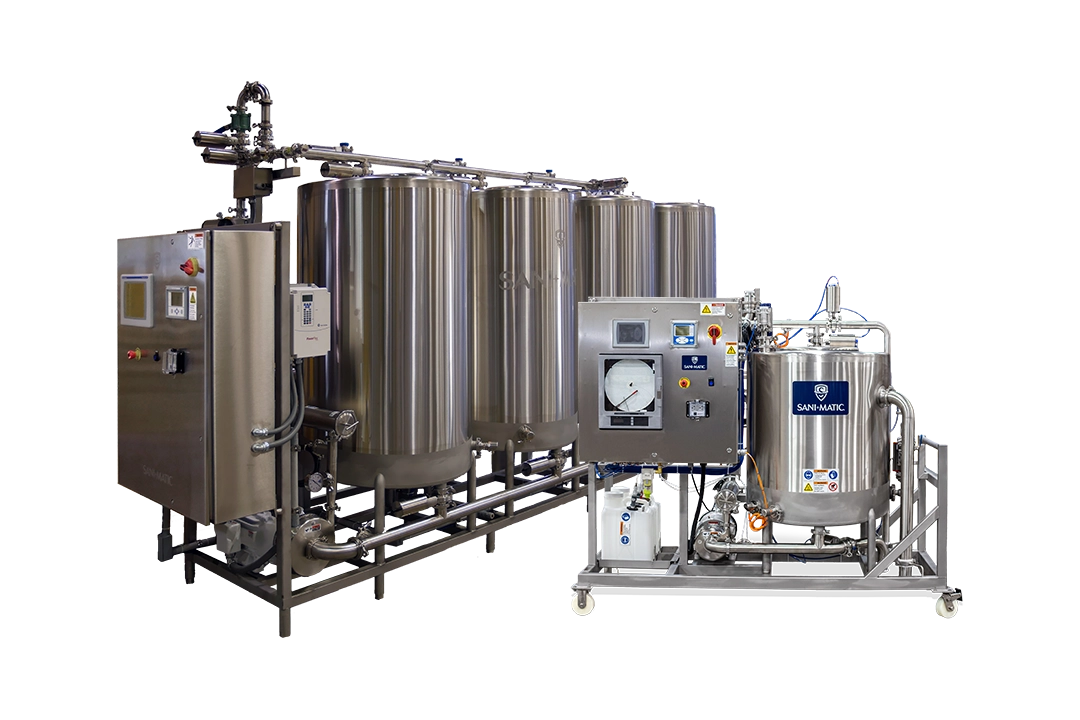

Industrial cip machine application 1
Technology & Material Guide
- Automated Cleaning Cycles: Programmable sequences with adjustable parameters for time, temperature, and flow rate. PLC-based control systems ensure compliance with FDA 21 CFR Part 11 for data integrity and audit trails.
- Material Specifications: All wetted components constructed from AISI 316L stainless steel with surface finish Ra ≤ 0.8 µm per ASME BPE standards. Ensures corrosion resistance, hygienic design, and compliance with food/pharmaceutical regulations.
- Sanitary Design Principles: Zero dead legs, self-draining configurations, and 3-A 14-03 compliant welds to eliminate microbial harborage points.
- Sensor Integration: In-line conductivity sensors (IEC 60529 IP67 rated), temperature probes, and pressure transducers for real-time validation of cleaning efficacy.
- Chemical Handling: Precision dosing via diaphragm pumps with PTFE diaphragms, adhering to EHEDG guidelines for chemical concentration accuracy and cross-contamination prevention.
| Component | Material Grade | Temperature Range | Pressure Rating | Compliance Standards |
|---|---|---|---|---|
| Piping | 316L | -20°C to 150°C | 10 bar | ASME BPE, FDA 21 CFR |
| Spray Balls | 316L | -20°C to 150°C | 6 bar | EHEDG, 3-A 14-03 |
| Pump Housing | 316L | -20°C to 150°C | 10 bar | ASME BPE |
| Valves | 316L | -20°C to 150°C | 10 bar | ISO 2037, EHEDG |
| Sensors | 316L/ |
Procurement Checklist for cip machine
| Check Item | Requirement | Verification Method |
|---|---|---|
| Material Specifications | 316L stainless steel (ASTM A240), surface finish Ra ≤ 0.8 µm | Mill certificates, surface roughness testing |
| Cleaning Parameters | Temperature 50–120°C, flow rate ≥1.5 m/s, pressure ≤10 bar | Pressure/temperature sensor calibration, flow meter validation |
| System Capacity | Max vessel volume 50,000 L, cycle time ≤45 min | Performance testing under maximum load conditions |
| Automation Level | PLC-based control with HMI, ≥10 stored recipes, data logging | Software configuration audit, recipe management test |
| Sanitary Compliance | 3A Standard 48-02 certified | Third-party certification documentation review |
| Chemical Compatibility | NaOH 1–3%, HNO3 0.5–1% resistance | ISO 3651-2 chemical exposure testing reports |
| Water Efficiency | ≤1.5 L per liter of product processed | Water usage measurement during operational cycles |
| Validation Documentation | IQ/OQ/PQ protocols per ASTM E2500, FDA 21 CFR Part 11 compliant | QA documentation review, regulatory compliance audit |
| Maintenance Requirements | Service intervals ≤500 hours, modular components | Maintenance manual analysis, component accessibility inspection |
| Supplier Support | 24/7 technical support, lead time ≤12 weeks | SLA agreement validation, delivery timeline confirmation |
Cost Structure Analysis
| Cost Component | HS Code | Cost Index | Notes |
|---|---|---|---|
| Pumps | 8413.70 | High | Primary equipment cost driver; centrifugal pumps dominate system performance |
| Heat Exchangers | 8419.50 | Medium | Critical for thermal efficiency; material grade impacts longevity |
| Control Systems | 8537.10 | Medium | PLC/HMI integration complexity affects implementation cost |
| Stainless Steel Tanks | 7309.00 | Medium | Austenitic grades (304/316L) dictate corrosion resistance and cost |
| Piping & Fittings | 7306.30 | High | Seamless stainless steel construction required for hygiene compliance |
| Valves & Manifolds | 8481.20 | Medium | Sanitary-grade components increase precision engineering costs |
| Installation & Commissioning | N/A | Medium | Regional labor rates and site complexity drive variability |
| Spare Parts Inventory | Varies | Low | OEM-specific parts require strategic stock planning |
Conclusion & Next Steps
Conclusion & Next Steps
Market trends indicate a 10-15% CAGR in CIP system adoption, driven by regulatory compliance and sustainability demands. Systems modernized with automation deliver up to 25% water savings and 20% faster cycle times compared to legacy solutions. Procurement teams must prioritize efficiency and compliance to align with industry benchmarks.
| Next Step | Key Metric | Target Value | Timeline |
|---|---|---|---|
| Conduct process audit | Water usage reduction | Up to 25% | Q1 |
| Supplier compliance validation | EHEDG certification rate | 100% | Q2 |
| IoT integration for monitoring | Operational efficiency gain | 20% | Q3 |
| Lifecycle cost analysis | Total cost of ownership | 10% reduction | Q4 |
